Gable Roof

A gable roof has two opposite sides with equal slopes and equal spans that meet in the center of the roof at the ridge. Use the Saltbox roof to calculate a two sided roof with different slopes, spans, and/or overhangs for each side of the roof.

To Calculate a Gable Roof

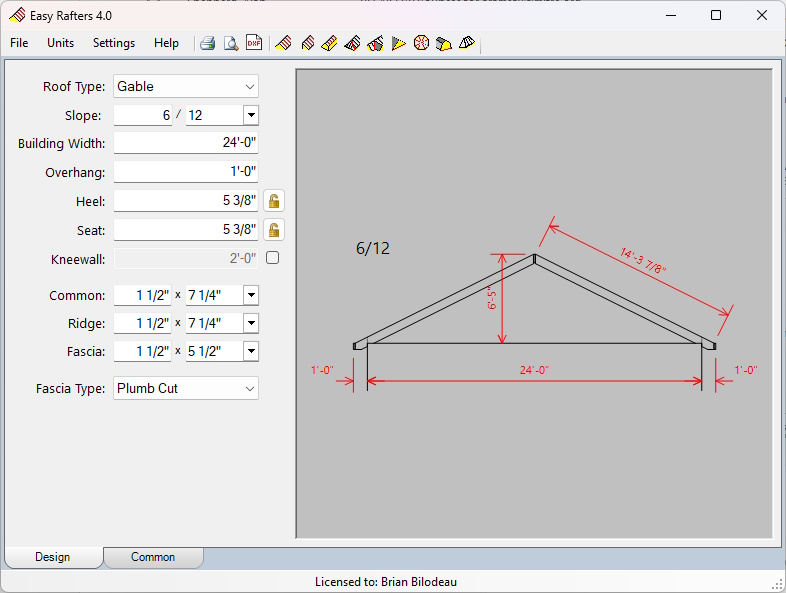

Select Gable from the Roof Type dropdown list or click on the corresponding button on the toolbar to calculate a gable roof. The preview window displays a dimensioned side view of the gable roof.

Design Tab

Slope

Enter or select the slope of the common rafters.

Building Width

Enter the total width of the building.

Overhang

Enter the horizontal overhang including the thickness of the fascia board. Use the Saltbox roof if you want different overhangs for the front and rear roofs.

Heel Height/Seat Cut

Accept the default heel height and seat cut dimensions calculated by Easy Rafters or override the defaults by locking one or the other and entering the desired measurement.

Kneewall (optional)

Check the checkbox to the right of the kneewall field to enable kneewalls and enter the distance from the outside edge of the wall to the face of the kneewall. The kneewall birdsmouth will use the same heel and seat dimensions as the bottom birdsmouth.

Lumber Sizes

Enter or select the lumber sizes for the common rafter, ridge board and fascia board. If no ridge board is used enter zero for the ridge thickness or select "No Ridge/Purlin" from the dropdown list.

Fascia Type

Select Plumb Cut or Square Cut from the dropdown list.

Drawing Tab

Common

The Common drawing tab displays a dimensioned side view of the Gable Roof common rafter.
